FRA 155S Oil Resistant Single Core
Applications :
- Single core cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc.
Standards :
- IEC 60332-1, EN 50265-2-1 (flame retardant)
- EN 50266-2 (non-flame propagating)

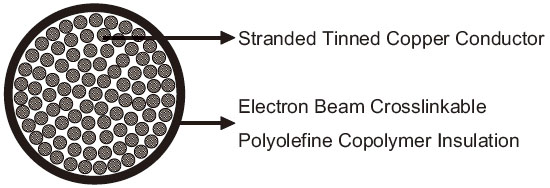

Construction :
- Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
- Insulation : Electron beam crosslinkable polyolefine copolymer.
- Colour Code : Various colours on request.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.50 0.75 1.0 1.5 2.5 4.0 6.0 Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 5.09 3.39 Voltage Rating V 450/750V (≤0.5mm²); 600/1000V (>0.5mm²)
Mechanical and Thermal Properties :
- Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
- Temperature Range : -55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing).
- Short Circuit Temperature : +280℃.
Dimensions and Weight :
No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Number and Nominal Diameter of Strands No./mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
1×0.50 | 16/0.20 | 0.4 | 1.7 | 7 |
1×0.75 | 24/0.20 | 0.5 | 2.2 | 11 |
1×1.0 | 30/0.20 | 0.6 | 2.5 | 15 |
1×1.5 | 30/0.25 | 0.6 | 2.7 | 19 |
1×2.5 | 50/0.25 | 0.7 | 3.5 | 30 |
1×4.0 | 56/0.30 | 0.8 | 4.2 | 45 |
1×6.0 | 84/0.30 | 0.9 | 5.2 | 66 |
Impact Resistant |
Highly Flexible |
Weather Resistant |
UV Resistant |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
